HX9800R-PTN

HX9800R-PTN supports both MPLS-TP and Carrier Ethernet (EPL, EVPL, EPLAN, EVC defined in MEF) for packet transportation.

In addition to native Ethernet transport, HX9800R-PTN can be used as the gateway for PDH and SDH/SONET networks to enter PSNs using Circuit Emulation and Encapsulation technologies.

Encapsulation technologies include TDMoE, TDMoIP, and TDMoMPLS. Circuit Emulation include CESoPSN (NxDS0/64K), SAToP (Unframed E1/T1), and CEP (SDH/SONET paths). Pseudowires make grooming and multiplexing DS0, E1/T1, and SDH/SONET paths easier, and service integrity can also be monitored and protected via packet network protection schemes.

One HX9800R-PTN with core switching bandwidth up to 400Gbps supports 100GE, 40GE, 10GE and 1GE along with additional TDM interfaces, including STM-n/OC-n, E1/T1, and a rich variety of low-speed DS0 interfaces. The system is a perfect combination of PTN/CE, SDH, and PDH technologies.

HX9800R-PTN provides high availability and reliability required by Carrier, Power Utility, Military, Government and Transportation applications by supporting MPLS-TP LSP 1:1/1+1 protection and ERPS, with protection switching time

CXR-HX9800R-PTN-CHA

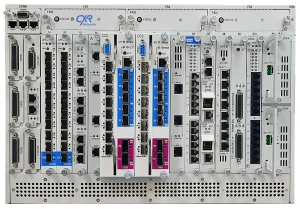

7U height rack chassis for HX9800R-PTN

CXR-HX9800R-PTN-CC2

Controller/CPU with RS232 console port. Supports 400Gbps core switching bandwidth and up to 396Gbps I/O bandwidth with full-duplex at wire-speed.

This module supports built-in line interfaces including:

2 x 10GE SFP+ ports

4 x 1GE SFP ports

2 x 100GE/40GE ports (Option / License)

HX9800R-PTN with CC2 Backplane on CHA Chassis:

CXR-HX9800R-PTN mPTN MPLS/CE Packet Transport Network Specifications:

Model		HX9800R-PTN-CHA
Dimensions		7U, 442 x 308 x 223.5 mm (W x H x D)
Power		Single -24 Vdc/-48 Vdc (-18 to -75 Vdc) power module
Temperature	Operating	-10 to 55°C
	Storage	-30 to 70°C
Weight	Net Weight
	Max. Weight
Humidity		0-95%RH (non-condensing)
Mounting		Desk-top stackable, 19/23 inch rack mountable
Power Consumption
