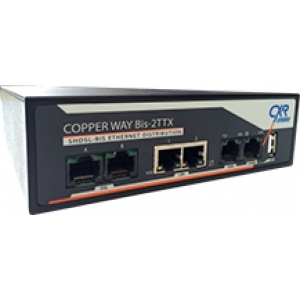

CopperLAN-Bis

CopperLAN-Bis delivers 30 Mbps high speed Ethernet transport over one or two copper pairs according to the G.SHDSL.Bis,  IEEE Ethernet First Mile standard



CopperLan-Bis delivers high speed Ethernet services over one or two copper pairs according to the ITU-T G.SHDSL.Bis / G.991.2 or IEEE 802.3ah Ethernet First Mile standards. Its 15 Mbps per pair speed and Ethernet protocols for VLAN, Provider Brdge (Q-in-Q) and QoS, help Service Providers and the industry to operate High Speed Symmetrical Ethernet services over very long distance on existing copper lines.

Performance is up to 15 Mbps per pair on 0.4 mm / AWG26 copper lines, or distance is up to 8 km at 384 kbps, or 12 km on 0.9 mm wire gauge.

CopperLan-Bis embeds a 4 ports wire speed Ethernet switch. One port supplies a 15 W POE source to feed a video camera, an IP phone, etc.

An asynchronous terminal such as a RTU, a Point Of Sales terminal, another equipment console port, etc. can connect to the network through the RS232 port of the CopperLan-Bis.

CopperLan-Bis comes as a compact product with a choice of mains and 24/48 Vdc power inputs, and DIN rail or 19'' mounting options.







SHDSL Interface

  • G.SHDSL Bis, UIT-T G.991.2 Annexe A/B, TC-PAM 16/32/64/128
  • 2 pairs mode: bonding EFM, IEEE 802.3ah
  • Line rate: 192 kbps to 15 Mbps per pair

Ethernet Interface

  • 4x 10/100BaseT Ethernet ports
  • POE option on port 1, Classe 3 - 15W, 802.3af

Ethernet Bridge 802.1d

  • VLAN: per port, 802.1q
  • Brovider Bridge, Double Tagg / Q-in-Q
  • Spanning Tree : 802.1d
  • QoS, Rate Limiting, traffic shaping on DSCP

Management

  • Web interface, http / https
  • SSH
  • Snmp v1/v2
  • Local console Port RS232, CLI

Power supply options

  • 5 Vdc and mains AC adapter
  • POE: 48 Vdc and mains AC adapter

 Distance over AGW26 0.4 mm cable, no noise

Distance over 0,4mm / AWG26
Rate on 1 pair
(kbps)		 Rate on 2 pairs
(kbps)		 Typical distance
(km)
192 384 8
512 1 024 7.2
1 536 3 072 5.7
2 048 4 096 5.2
4 096 8 192 3.9
5 696 11 392 2.9







  • CopperLan-Bis-E : plastic case product with external 110-230 Vac mains power adapter
  • CopperLan-Bis-POE : plastic case product with one POE source port, 48 Vdc power input and external 110-230 Vac power adapter
  • CopperLan-Bis-MPOE : aluminum case product with one POE source port, 48 Vdc power input and external 110-230 Vac power adapter
